Productdetails:
|
Productsoort: | Productielijn voor kunststofimitatie van rotan | Grondstoffen: | Polypropyleen-PP-pellets, gerecycled pellets |
---|---|---|---|
Verwerkingstype: | Extruderingsmachine | Schroefontwerp: | enkelvoudige schroef |
Spanning: | 220V/380V/415V | Kracht: | 22 kW |
Gedreven type: | Elektrisch | Verwerkt kunststof: | PP, PE |
Toepassing: | Verpakkingsriem | Automatisering: | Automatisch |
Garantie: | 1 jaar | ||
Markeren: | Multicolor rotan maken machine,19 mm rotanmachine,Kunstmatige rotan-extrusiemachine ISO |

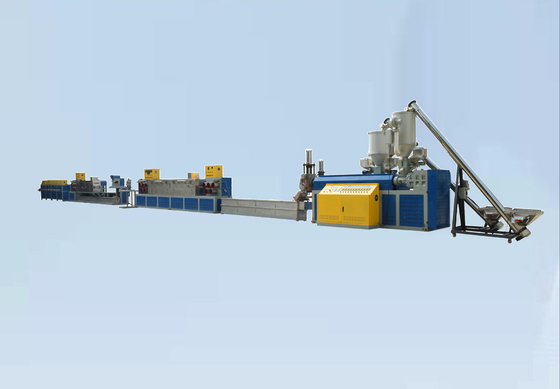

Plastic Imitation Rattan Production Line/PP PE Multicolor Rattan Maker
GEBRUIKSBESCHRIVING
Model nr. | Grootte van de schroef | Nummer van de riem | Capaciteit | Totaal vermogen | Breedtebereik | Diktebereik | Afmetingen van de installatie |
JTPP-90 | 2800 mm | 2 | 100 kg/uur | 80 kW | 5-19 mm | 0.4-1.2 mm | 30*2,0*4,0M |
JTPP-100 | 2800 mm | 3 | 150 kg/uur | 90 kW | 5-19 mm | 0.4-1.2 mm | 30*2,2*4,0M |
JTPP-110 | 3300 mm | 4 | 200 kg/uur | 100 kW | 5-19 mm | 0.4-1.2 mm | 38*2,0*4,0M |
JTPP-110 | 3300 mm | 6 | 130 kg/uur | 100 kW | 5-19 mm | 0.4-1.2 mm | 38*2,0*4,0M |
