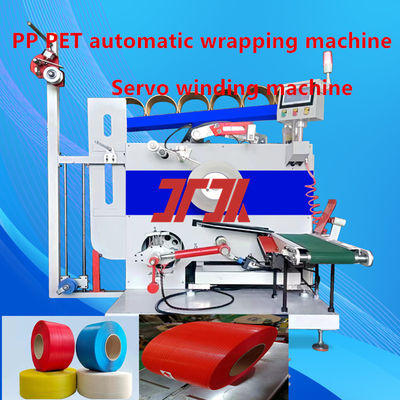

PP PET packaging belt automatic winding machine servo winder winding flat winding the whole
FUNCTIONS OF AUTOMATIC WINDING MACHINE
Automatic winding machine, servo winding machine, is a wire winding machine used for PP PET strapping belt. It wraps the whole body, the winding layer is flat, there is no overlap, and it is fully automated and does not require manual operation.
FEATURES
①Dimension Compatibility-------- Switch between meter and weight modes via the PLC touchscreen.
②Weight Capacity-------- Typically supports 20-300 kg per roll, with custom sizes available.
③Strap Compatibility------ Compatible with PP (polypropylene) and PET strapping, with a wide range of strapping widths (5-25 mm is common).
PARAMETER TABLE
| Name |
Automatic Winding Machine |
| Tape width |
5-19mm |
| Thickness |
0.4-1.2mm |
| Control mode |
servo motor |
| Pressure |
4-7kgf |
| PLC control |
YES |
| Paper tube |
Ø200*180/190mm |
| Max weight |
10kg/roll |
| power single-phase |
220V |
| Weight |
650KG |
| Overall dimension |
(L)1900mm*(W)1850mm*(H) 1800mm |

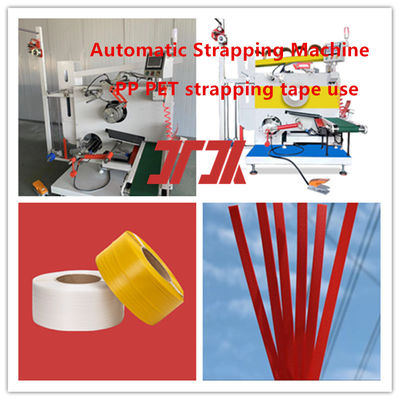

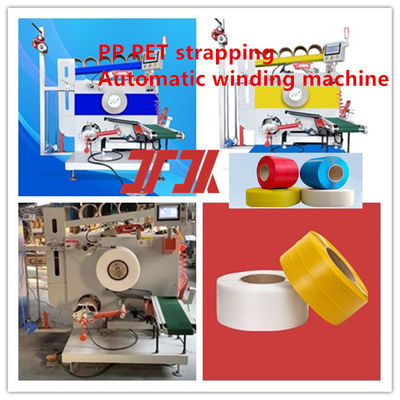

FINISHED PP BELT DISPLAY:
rolled flat, wrapped around the whole body, with smooth sides.

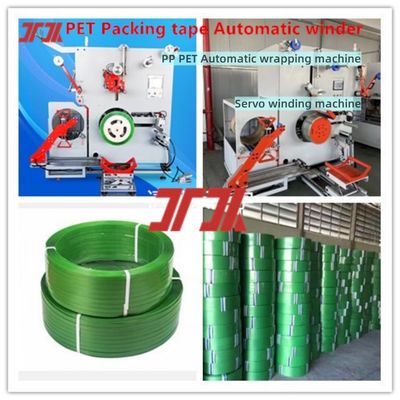

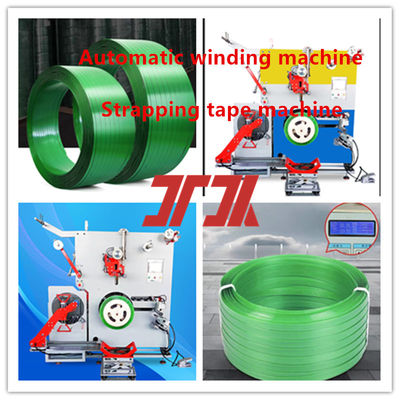

FINISHED PET BELT DISPLAY:
rolled flat, wrapped around the whole body, with smooth sides.
Stable and Reliable
Adjustable Tension---------Controls the strapping tension through pneumatic or mechanical means, ensuring a tight fit and preventing loosening during transport.
Multi-Layer Wrapping---------Customizes the number of wrapping layers and overlap ratio to accommodate various specifications.
Anti-Slip Design-------- Select models feature an anti-slip film or pre-stretching function to enhance the friction between the strapping and the product.
Changeable Specifications----------- One-touch switching offers a full range of specifications and simple operation.
FQA:
Q: Where is the automatic winding machine made?
A: China
Q: What is the voltage of the automatic winding machine?
A: 220V
Q: What mode is the automatic winding machine controlled by?
A: Servo motor control
Q: Can the automatic winding machine be purchased separately?
A: Yes
Q: Does the automatic winding machine require manual operation?
A: No, the entire process is controlled by PLC computerization.
