Productdetails:
|
| Kunststof verwerkt: | huisdier | Schroefdiameter (mm): | 110 mm |
|---|---|---|---|
| Productiecapaciteit: | 225-250kgs/u kan worden aangepast | Garantie: | 1 jaar |
| Aantal geëxtrudeerde riem: | 3 | Toepassingscope: | Brickyard, metaal, staal, aluminium, brouwerij |
| schermwisselaar: | dubbele cilinder/enige cilinder | Dikte bereik: | 0,4-1,2 mm |
| Breedte bereik: | 9-32 mm | Toepasselijke grondstoffen: | het materiaal van de flessenvlok, 100% gebroken materiaal |

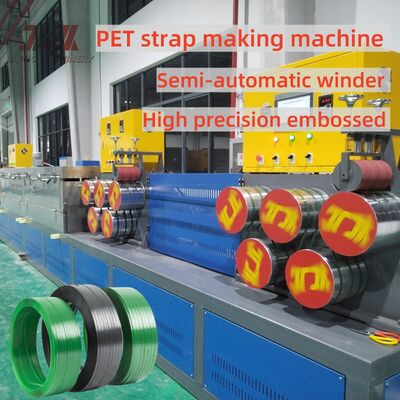

Automatic Pet Strapping Band Production Machine Extrusion Line 150m/min Line Speed
The process fiow of PET strap making machine as below
Horizontal mixer→Crystallizing and drying system →filter material→Extruder→ Cooling Tank→pre-heating Oven→ first Stretching →second stretching→Embossing machine →shaping oven→ cooling →Haul-off machine →Winder
Parameters of PET 2straps output production machine
| 1 | Materials | PET CRUSHED MATETIAL / bottle flakes material /virgin material |
| 2 | Product | PET strap (1 mould for 2straps) |
| 3 | Capacity | 200-225kg/H |
| 4 | Total install power | 100kw, (actual power consumption is 40-50%) |
| 5 | Strap width | 9mm-32 mm |
| 6 | Thickness | 0.4 mm-1.2 mm |
| 7 | Manpower | 2person/shift |
| 8 | Workshop required | L (50m) ×W (4m) ×H (8m) |
| 9 | Power source | 380V, 50Hz, 3Phase (according to customer requirement) |
| 10 | Electric components | Schneider |
| 11 | Inverter | INVT |
| 12 | Switches | Fotek |
| 13 | Motor power | GUGAO |
Feature of JIATUO PET strap making machine
Application for plastic steel strapping
![]()
![]()
FAQ
1. Are you trading company or manufacturer?
We are manufacturer, and also provide the business solution to all the friends.
2. Do you have quality certificate?
Yes we have CE, SGS etc.
3. What's the delivery time?
Around 40~50days, however, based on order.
4. What is your overseas service?
We will provide high quality overseas service ,our technical staff will be able to provide you with technical support, for you personally to overseas assembly and test equipment.
![]()
