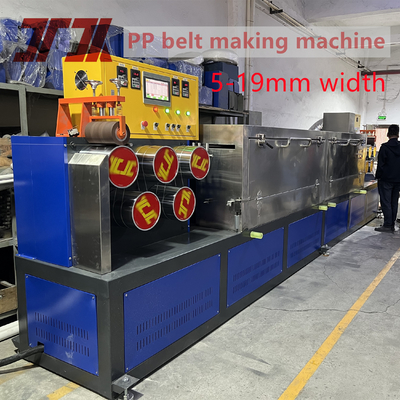

High speed PP strapping tape production line PP plastic strapping equipment with 100% polypropylene new material
PRODUCT DESCRIPTION
PP strapping tape production line is a high-end intelligent extrusion equipment that can produce PP tape: width: 5-19mm, thickness: 0.3-1.2mm
Raw materials-----PP strapping equipment can produce plastic raw materials:
100%recycled materials or PP polypropylene new materials to produce strapping tape;
Screw-----The equipment adopts high-precision high-quality screws, adopts well-known brands, and has unique parameter design. It has the advantages of large extrusion volume, good plasticization, high hardness and wear resistance; equipped with a quantitative extrusion system, the width and thickness of the produced belts are the same, the error range is small, and it meets the national strapping tape acceptance standards;
Automatic screen changer------Equipped with a non-stop automatic screen changer, the screen does not need to be stopped, and the efficiency is maximized. 4-net circulation large-area filtration does not require frequent screen changes.
| Model No. |
Screw Size |
No. of strap |
Capacity |
Total Power |
Width Range |
Thickness Range |
Installation Dimensions |
| JTPP-90 |
2800mm |
2 |
100kg/h |
80kw |
5-19mm |
0.4-1.2mm |
30*2.0*4.0M |
| JTPP-100 |
2800mm |
3 |
150kg/h |
90kw |
5-19mm |
0.4-1.2mm |
30*2.2*4.0M |
| JTPP-110 |
3300mm |
4 |
200kg/h |
100kw |
5-19mm |
0.4-1.2mm |
38*2.0*4.0M |
| JTPP-120 |
3300mm |
6 |
300kg/h |
120kw |
5-19mm |
0.4-1.2mm |
40*2.0*4.0M |
Plastic Strapping
Plastic strappping materials are made from Polyester,Polypropylene and are available in a variety of strengths,
styles,and finishes.Unlike steel strapping,elongation and recovery are a key factor for deciding which type of
plastic strap to use.
Polypropylene Strapping
Polypropylene strapping is an economical strapping material compared to other materials.it's designed for light to
medium duty unitizing,palletizing and bundling.Consistent pressure to polypropylene strapping can result in
unrecoverable dead stretch and inability to return to its original length
Features of PP strapping production line:
1. It is suitable for all levels of recycled plastic particles, and produces sandwich belts and PP environmentally friendly packing belts;
2. It can be used to directly produce manual packing belts;
3. It can also be directly processed into hand-use, machine-use, printing packing tape, ultra-wide, ultra-thin, ultra-narrow, transparent, dyeing, and printing PP packing tape;
4. It is currently the most cost-effective and competitive product on the market, and is popular among small and medium-sized investors;
5. It can produce all kinds of manual belts, machine-use PP packing belts and export belts.
About After-sales
We provide comprehensive technical support and service for our PP Strap Making Machine. Our team of experienced technicians can provide a variety of services, including:
Pre-sales:
1.Layout plan of PP belt making machine.
2.Analysis of the cost of PP tape making machine.
3.Raw materials that can be used for PP tape making machine.
After-sales service:
1.Water and electricity circuits of PP belt making machine, circuit drawings, etc.
2.Installation, commissioning and training of PP belt making machine.
3.Maintenance service of PP belt making machine.
4.Regular maintenance and repair
5.Troubleshooting and diagnosis
6.Software updates and upgrades
7.Spare parts and accessories
8.Training and technical advice
